Note the following precautions when installing the projector.
If the projector is installed at an angle, it should be installed by qualified technicians using mounting hardware designed for use with this projector.
Install the projector appropriately to prevent it from falling down.

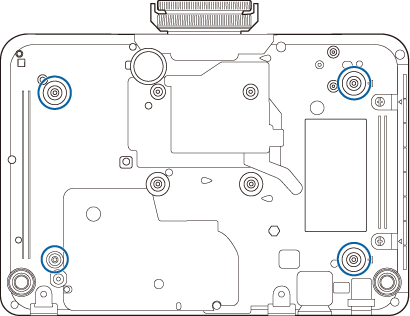

Use M4 screws (up to a depth of 9 mm) to fix the projector's ceiling mount fixing points and the mounting hardware at four points.

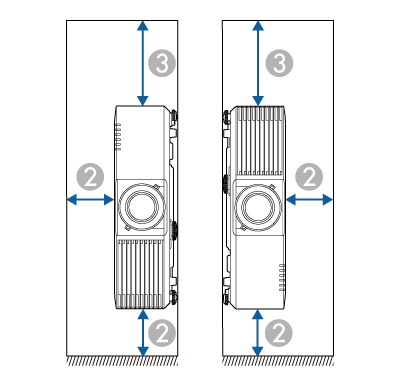

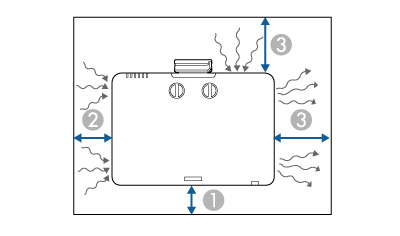

Be sure to leave the following amount of space around the projector so as not to block the air exhaust and intake vents.
|
|
10 cm |
|
|
20 cm |
|
|
40 cm |

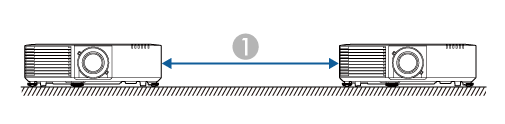

If you are installing multiple projectors next to each other, make sure hot air from the exhaust vent does not go into the air intake vent of another projector.
|
|
150 cm |

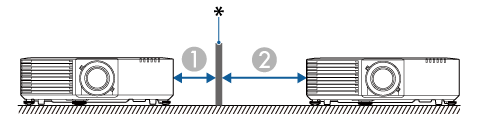

If you use a partition, you can narrow the space between the projectors.
|
|
20 cm |
|
|
40 cm |
|
* |
Partition |
