When Using the Ceiling Mount ELPMB30

You can attach a safety wire to your projector for increased safety as shown.

Before you start, make sure you have firmly installed the ELPMB30 ceiling mount on the projector and have the following items that are included in the safety wire set:

  • Safety wire × 1

  • Carabiner × 2 (Only one carabiner is used for the ELPMB30.)

  • Wire clamp × 1

  • Attaching screw (M4 × 10 mm) × 1

For details on installing the ELPMB30, see the ELPMB30 User's Guide.

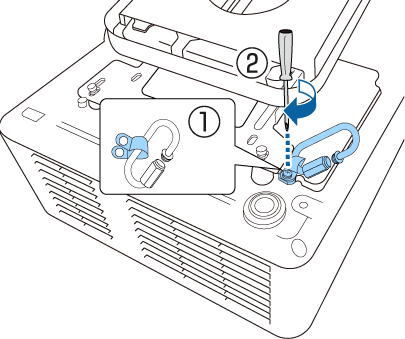

  1. Attach the wire clamp to the carabiner, and then use the screw to fix the wire clamp to the screw into the wire clamp fixing point on the projector.

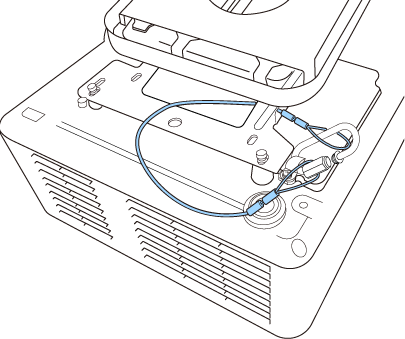

  2. Loop the safety wire through the hole in the ceiling mount, and then attach both ends to the carabiner.

    Warning:

    Do not attach the safety wire to the security cable attachment point.

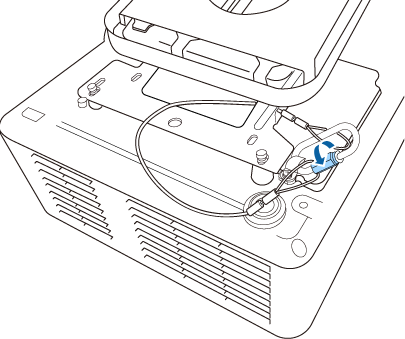

  3. Tighten the carabiner lock.
