Adjusting the Image Height

If you are projecting from a table or other flat surface and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

The larger the angle of tilt, the harder it becomes to focus. Locate the projector so that it only needs to be tilted at a small angle.

  1. Turn on the projector and display an image.

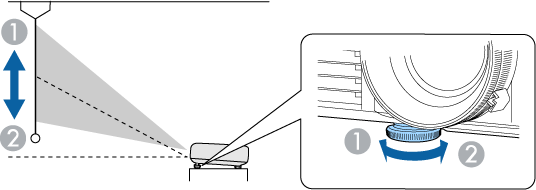

  2. To adjust the image height, rotate the front foot to extend or retract it.

    Extend the front foot

    Retract the front foot

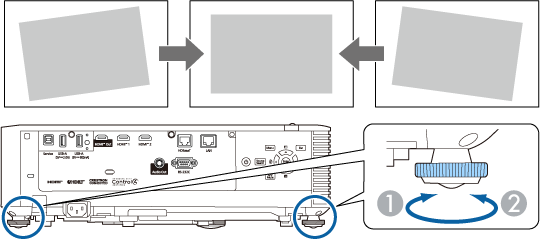

  3. If the image is tilted, rotate the rear feet to adjust their height.

    Extend the rear foot

    Retract the rear foot
If the projected image is unevenly rectangular, you need to adjust the image shape.
