Attaching and Removing the Cable Cover

When suspending the projector from a ceiling, you can attach the optional cable cover to hide the attached cables from view.

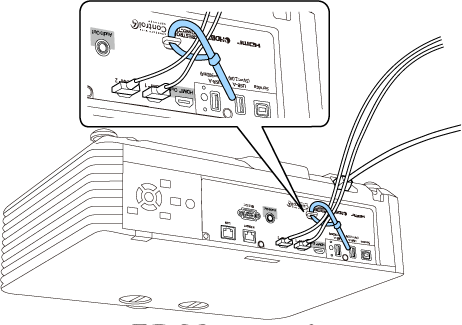

  1. Pass a commercially available cable tie through the cable holder and tie the cables together.

    Caution:

    Do not bundle the power cord to the other cables. Otherwise, a fire may occur.

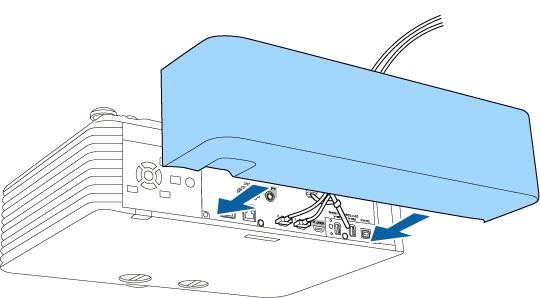

  2. Place the cable cover on the projector as shown, guiding the cables through the notch on the base of the cable cover.

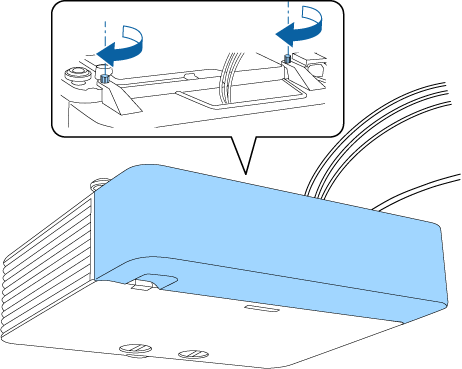

  3. Tighten the cable cover screws.

    To remove the cover, loosen the cover screws and pull the cover off of the projector.
