Adjusting the Image Position Using Lens Shift

If you cannot install the projector directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.

Attention:

When adjusting the image position with the vertical lens shift, adjust it by moving the image from the bottom to the top. If you adjust it from the top to the bottom, the image position may move down slightly after adjusting.

  • Wait 30 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

  • Keep the vertical and horizontal lens shift dials in their center positions of the lens shift adjustment range for the clearest picture.

  1. Turn on the projector and display an image.

  2. Turn the vertical and horizontal lens shift dials on the projector to adjust the position of the projected image as necessary.

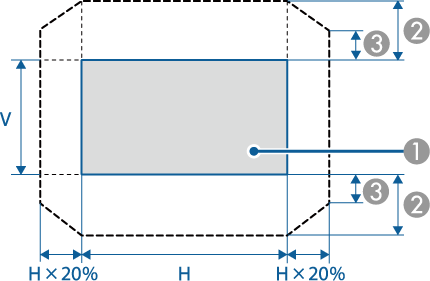

    Projected image at the center of the lens shift adjustment range

    Maximum range: V × 50%

    When the horizontal direction is at the maximum value: V × 12%

    • You cannot move the image horizontally when the lens is shifted vertically all the way.

    • The lens shift adjustment range is an approximate value.
